DSP24 connector layout

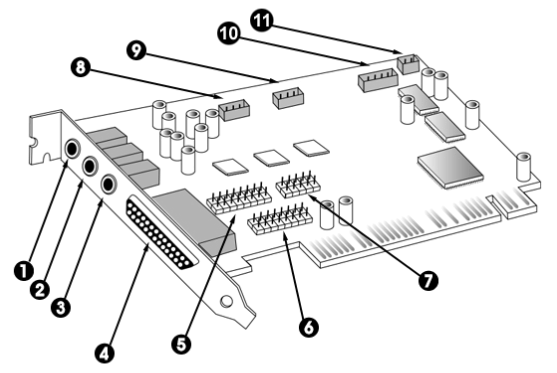

This text describes the connectors of the DSP24 PCI-card. The graphic shows the PCI-card:

DSP24 PCI-card

1 -   Microphone Input (1/8" jack) - routed to the Internal Mixer [1]
2 -   Line Input (1/8" jack) - routed to the Internal Mixer [1]
3 -   Systemsound / Line Out (1/8" jack) - sends out the Internal Mixer [1] signal
4 -   H-BUS [2] digital I/O connector (44pin D-SUB) for external boxes (controlled by the External Links [3] software)
5 -   16 pin connector for optional audio I/O extensions (for future expansion)
6 -   16 pin connector for optional MIDI I/O extensions (for future expansion)
7 -   Digital Audio connector - can be used to connect to a SoundTrack Digital Audio 4ch/16ch soundcard by Hoontech [4] internally
8 -   CD In - can be connected to the analog output from CD-ROM (routed to the Internal Mixer [1])
9 -   Aux In - can be connected to the analog output from a TV-card or another analog source (routed to the Internal Mixer [1])
10 -   S/PDIF I/O - Connection to the XG DB I [5] daughtercard
11 -   CD In - can be connected to the digital output from CD-ROM (disabled when the S/PDIF or AES/EBU input is active and vice-versa)

>> Back to Knowledge Base <<

last updated: 09/06/2001 author: Claus Riethmüller
